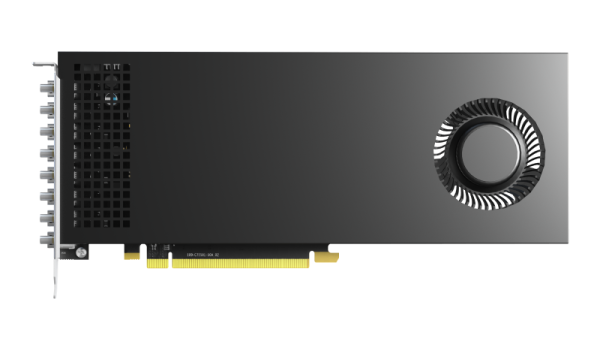

LUMA Pro A380 Octal - Matrox Drive multi-display 8K HDR video wall applications
|
Product |
|
| Part number | LUMA-A380P8 |
| Bus type | PCIe 4.0 x 16 |
| Number of video outputs | 8 |
| Video output connectors | 8x Mini DisplayPort (secure) |
| DisplayPort specification | 2.0 UHBR10 |
| Maximum number of cards in a system | 2 |
| Performance | |
| Maximum resolution | 4x 8K60/5K120 or
8x 5K60 HDR 12b |
| Bit depth and color space | Up to 36 bpp (Bits per Pixel)
YCbCR 4:4:4 YCbCR 4:2:0 RGB |
| Memory | 12GB GDDR6 |
| GPU | 2x Intel® ArcTM A380E |
| Multi-stream audio | High-definition audio streams on four digital ports simultaneously |
| Additional features | |
| DisplayPort features | VESA DSC 1.1, and Adaptive Sync |
| HDCP compliance | 2.3 |
| Board-to-board framelock | Max of 2 cards |
| Supported graphics API | DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI and OpenVINO |
| Hardware video encode/decode | H264/H265/AV1/VP9 |
| Hardware | |
| Form factor | Standard Height Single Slot |
| Dimensions | Length: 26.45 cm (10.41″)
Height: 12.68 cm (4.99″) |
| Bracket | Standard Height |
| Environmental & Power consumption | |
| Cooling | Active |
| Power consumption | 130W |
| Operating temperature | 0 to 45 oC (32 to 113 °F) |
| Regulatory compliance | FCC (US) Class A, CE (European Union) Class A, RCM (Australia/New Zealand) Class A, KC (Korea) Class A, ICES-3 (Canada) Class A, UKCA (United Kingdom) Class A |
| Environmental compliance | EU RoHS, China RoHS, REACH |
| Warranty1 | 3 years |
| Software & API | |
| Matrox PowerDesk for Windows | Yes |
| Mura Developer tools | Yes |
| Operating systems | Windows 10 64-bit & LTSC (ver 2021 and up) / Windows 11 64-bit |
| System requirements2 | Single available PCIe 3.0 (or newer) x8 slot
Intel Core Processor from 10th Gen to 14th Gen, Intel Xeon W-2400 and W-3400 processor for workstations Resizable BAR (reBAR) or Smart Access Memory (SAM) |
| Accessories | |
| Mini DisplayPort to DisplayPort adapter | 8 CAB-MDP-DPF adapters included |
